Aluminum alloy powders are important for metal 3D printing. They are light but strong. Among, AlSi7Mg powder is a very popular aluminum alloy powder. It is widely used and well-researched.
What is the Chemical Composition of AlSi7Mg?
AlSi7Mg powder has a special chemical recipe. It contains about 6.5-7.5% silicon (Si) and 0.5-0.8% magnesium (Mg). The rest is aluminum (Al).
Silicon makes the alloy easier to melt and shape, and it also helps prevent cracks. Magnesium is added in small amounts, but it makes the alloy stronger. After 3D printing, a heat treatment is applied. This process forms tiny, strong particles inside the material, called Mg2Si. These particles block dislocations and make the material stronger.
What are the Key Properties of AlSi7Mg Powder?
3D printing makes AlSi7Mg much better than the cast version. It has very fine internal structure.
First, its mechanical properties are good. Its yield strength is between 220-280 MPa, and the tensile strength can reach 300-400 MPa. It can also stretch a little before breaking.
Second, it conducts heat very well. Its thermal conductivity is between 120-150 W/(m·K), which makes it perfect for cooling parts. It is used to make heat sinks and cold plates.
Third, it is very light. Its density is about 2.68 g/cm³. This is about one-third the density of steel. It is strong for its weight. It also resists corrosion well. Finished parts can also be machined easily.

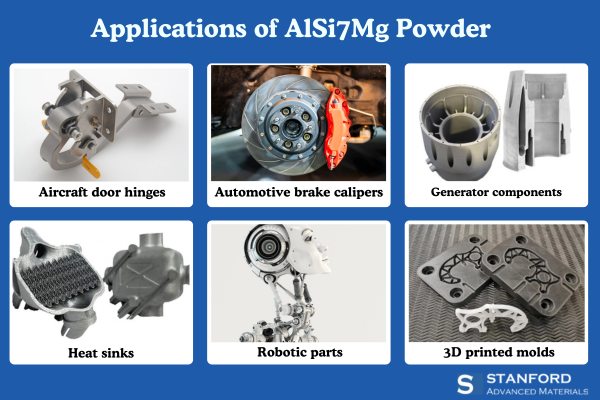

What is AlSi7Mg Powder Commonly Used for?
AlSi7Mg powder is used to make complex parts that must be light, strong, and good at managing heat.
1. In aerospace, saving weight is very important. Given the advantages of AlSi7Mg, it is used to make critical parts for aircraft and satellites. These parts include brackets, door hinges, and frames for drones.
2. In the automotive industry, light weight improves performance and efficiency, especially for electric cars. AlSi7Mg is used for engine brackets, brake calipers, and battery cooling plates. Moreover, its good heat transfer helps keep batteries safe. It helps manage the heat generated by battery packs during fast charging. This ensures battery safety and extends battery life.
3. AlSi7Mg powder is also used in heat exchangers. AlSi7Mg heat exchangers are very efficient and compact in that 3D printing can make very complex cooling channels inside them. As a result, they are used in electronics and industrial systems.
4. This material is also used for custom industrial tools and robotic parts. For example, it makes lightweight end-of-arm tools for robots. Lighter robot parts can move faster and more precisely. They also use less energy. Another use is in injection molding. 3D printed molds with internal cooling channels can be made from AlSi7Mg. These channels cool the plastic parts more evenly and quickly. This significantly shortens production cycle times and improves product quality.
AlSi7Mg vs. AlSi10Mg
People often compare AlSi7Mg with AlSi10Mg. The main difference is the silicon content, and AlSi10Mg has more silicon, about 9-11%.
More silicon makes the material even easier to print. AlSi10Mg has better fluidity when melted and less shrinkage. This means it is less likely to crack or warp during printing. Because of this, AlSi10Mg is often considered easier and more forgiving to print.
However, AlSi7Mg has its own advantages. It is usually tougher and can stretch more before breaking. It also conducts heat better because it has more aluminum. For parts that need good toughness and heat conduction, AlSi7Mg is a better choice. For parts that need easy printing and high hardness, AlSi10Mg might be better.
Frequently Asked Questions about AlSi7Mg
1. Is AlSi7Mg strong?
Yes, it is strong. After printing and heat treatment, it is as strong as many cast aluminum parts. It is also very light, which makes it strong for its weight.
2. Can I machine parts made from AlSi7Mg powder?
Yes, you can. Parts made with 3D printing can be machined later. You can drill, mill, or turn them to get a more precise size or a smoother surface.
3. What is AlSi7Mg used for?
It is used to make strong, light, and complex parts. Common uses are in airplanes, cars, and electronics for cooling.
4. How is AlSi7Mg different from regular aluminum?
It has silicon and magnesium added. These elements make it stronger and easier to 3D print. The 3D printing process itself also makes its internal structure much finer and stronger than traditional cast aluminum.
5. Does AlSi7Mg rust?
Aluminum does not rust like iron or steel. But it can corrode. AlSi7Mg has good resistance to corrosion, especially in normal atmospheric conditions.
