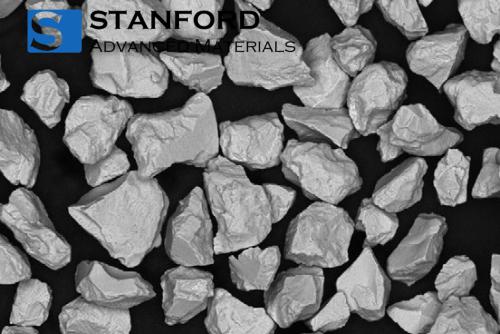

ZrO2 48Y2O3 Powder Description:
ZrO2 48Y2O3 Powder is a high-yttria zirconia material, containing 48 wt.% yttria, specifically designed for top coats in thermal barrier coatings (TBCs). This powder is engineered to produce dense or segmented microstructures when applied using atmospheric plasma spray technology, offering significant advantages over conventional 7-8 wt.% yttria-stabilized zirconia. Its high yttria content ensures low thermal conductivity and excellent phase stability at elevated temperatures, which extends the coating's service life.
Additionally, ZrO2 48Y2O3 Powder provides enhanced resistance to molten sand and ash (CMAS), although it may have lower erosion resistance compared to materials with lower yttria content. The powder's fused and crushed manufacturing process results in coatings with very low porosity, making it suitable for use as a top coat in combination with intermediate layers of 7-8 wt.% yttria-stabilized zirconia and MCrAlY bond coats in multi-layer or graded TBC systems for industrial gas turbines and aerospace engines.
ZrO2 48Y2O3 Powder Specifications:
|
Nominal Chemistry
|
ZrO2 48Y2O3
|
|
Nom. Particle Size Distr.(µm)
|
-63 +11
|
|
Morphology
|
Irregular
|
|
Melting Temperature (°C)
|
2700
|
|
Max. Service Temperature (°C)
|
1250
|
ZrO2 48Y2O3 Powder Applications:
-
Aerospace Engines: Used as a top coat in thermal barrier coatings for turbine blades and other critical components to enhance high-temperature performance and prolong engine life.
-
Industrial Gas Turbines: Applied in gas turbine engines to improve thermal insulation, resist molten sand and ash (CMAS), and reduce thermal conductivity, thereby increasing efficiency and durability.
-
Power Generation: Employed in thermal barrier coatings for equipment in power generation facilities to provide effective thermal protection and resistance to high-temperature degradation.
-
High-Temperature Components: Used in various high-temperature industrial applications where improved phase stability and lower thermal conductivity are crucial, such as in furnaces and kilns.
-
Multi-Layer Coatings: Serves as a top coat in multi-layer or graded thermal barrier coating systems, combined with intermediate layers of 7-8 wt.% yttria-stabilized zirconia and MCrAlY bond coats, to enhance the overall performance of thermal barrier coatings.
ZrO2 48Y2O3 Powder Packing:
Our ZrO2 48Y2O3 Powder is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
ZrO2 48Y2O3 Powder FAQ:
Q1: What are the key advantages of using ZrO2 48Y2O3 Powder in thermal barrier coatings?
ZrO2 48Y2O3 Powder offers low thermal conductivity, excellent phase stability at high temperatures, and enhanced resistance to CMAS (molten sand and ash) attack, making it ideal for improving the performance and longevity of thermal barrier coatings.
Q2: In which applications is ZrO2 48Y2O3 Powder commonly used?
This powder is commonly used in aerospace engines, industrial gas turbines, power generation equipment, and high-temperature industrial components to enhance thermal insulation and resistance to high-temperature degradation.
Q3: How does ZrO2 48Y2O3 Powder compare to conventional 7-8 wt.% yttria-stabilized zirconia (YSZ) powders?
ZrO2 48Y2O3 Powder offers lower thermal conductivity, improved phase stability, and better resistance to CMAS compared to conventional 7-8 wt.% YSZ powders, though it may have lower erosion resistance.
