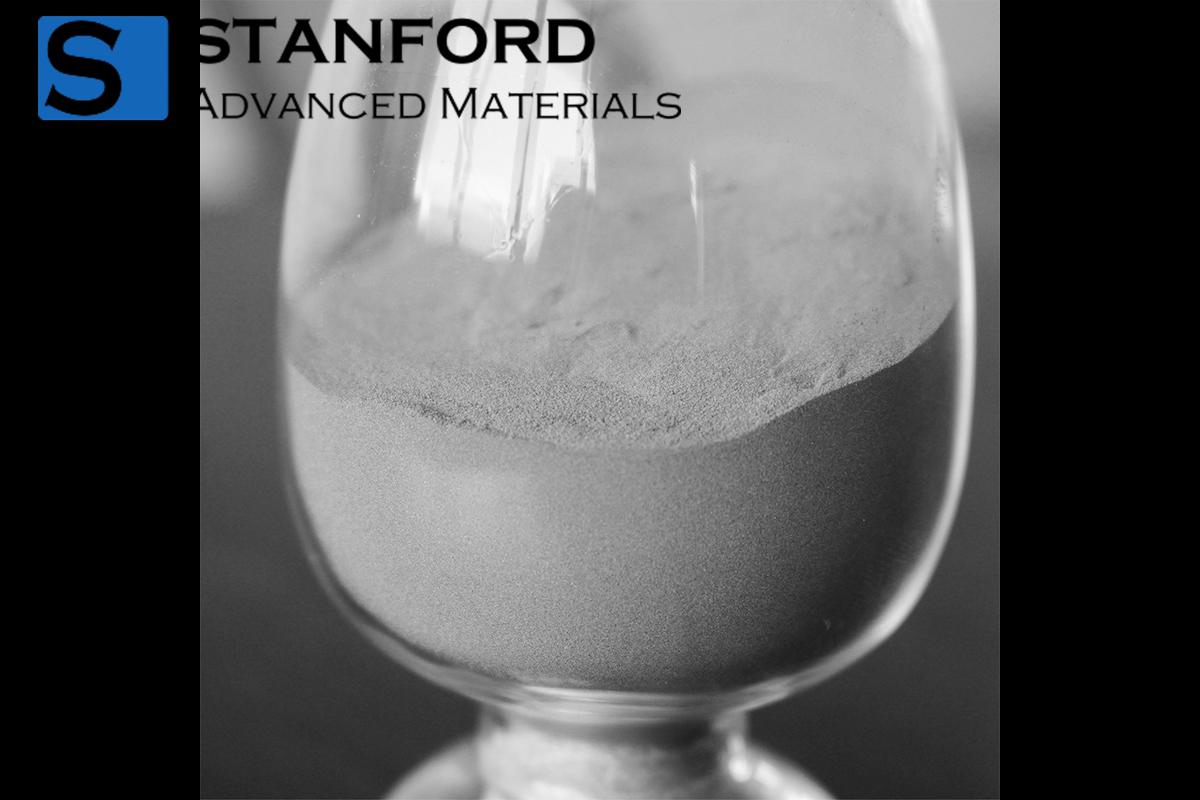

Spherical Ti-6.5Al-1Mo-1V-2Zr Powder Description
Ti-6.5Al-1Mo-1V-2Zr is a near-α titanium alloy. It achieves solution strengthening through the α-stabilizing element Al, while incorporating neutral element Zr and β-stabilizing elements Mo and V to improve processing characteristics. As a result, it combines the excellent thermal strength and weldability of α-type titanium alloys with processing plasticity approaching that of α+β-type titanium alloys.
Compared to Ti-6Al-4V, Ti-6.5Al-1Mo-1V-2Zr demonstrates superior:
- Room-temperature and high-temperature strength
- Fracture toughness
- Fatigue limit
- Stress resistance
- Corrosion resistance
- Weldability
The powder can be used in a variety of metal 3D printers including Renishow, EOS, ConceptLaser, SLM, 3Dsystems, Arcam and more.
Spherical Ti-6.5Al-1Mo-1V-2Zr Powder Specifications
|
Grade
|
Chemical composition (WT %)
|
|
TA15
|
Ti
|
Fe
|
C
|
N
|
H
|
Mn
|
V
|
Zr
|
Al
|
Si
|
Other
|
|
Each
|
Total
|
|
Bal
|
0.25
|
≤0.1
|
≤0.05
|
≤0.015
|
0.5-2.0
|
0.8-0.25
|
1.5-2.5
|
5.5-7.1
|
0.15
|
≤0.1
|
≤0.4
|
|
Size
|
0-25μm,15-53μm,45-105μm,or customized
|
|
Grade
|
Ti-6.5Al-2Zr-1Mo-1V, TA15
|
|
Shape
|
Spherical powder
|
|
Bulk Density
|
≥2.3 g/cm3
|
|
Tap Density
|
≥2.6 g/cm3
|
|
Hall Flow Rate
|
≤45 s / 50 g
|
|
Oxygen Content
|
≤1800 ppm
|
|
Nitrogen Content
|
≤300 ppm
|
*Custom oxygen content with lower levels is available. Please feel free to contact us.
Spherical Ti-6.5Al-1Mo-1V-2Zr Powder Properties
The TA15 spherical powder possesses high strength, good high-temperature resistance, excellent corrosion resistance, superior fatigue resistance, and good machinability.
Mechanical Properties Comparison
|
Property
|
Ti-6Al-4V
|
Ti-6.5Al-1Mo-1V-2Zr
|
Ti-6Al-2Sn-4Zr-2Mo
|
|
Tensile Strength (MPa)
|
900–1100
|
850–1000
|
900–1050
|
|
Yield Strength (MPa)
|
800–900
|
750–900
|
800–950
|
|
Elongation (%)
|
10–15
|
8–12
|
8–10
|
|
High-Temperature Performance
|
≤300°C
|
300–450°C
|
500–600°C
|
|
Creep Resistance
|
Moderate
|
Medium
|
Excellent
|
Spherical Ti-6.5Al-1Mo-1V-2Zr Powder Applications
- 3D printing material (SLM selection laser melting, EBM electron beam melting, LMD laser metal deposition, etc.)
-Powder metallurgy (PM), injection molding (MIM), hot isostatic pressing (HIP), spray coating (SP), welding repair, etc.
The Ti-6.5Al-1Mo-1V-2Zr alloy finds exceptionally wide applications in the aerospace industry, primarily used for manufacturing welded structural components, load-bearing structures, and large integrated parts for aircraft, missiles, launch vehicles, and satellites.
Spherical Ti-6.5Al-1Mo-1V-2Zr Powder Packing
Spherical powders are typically packaged in vacuum aluminum foil bags or filled with inert gas (Ar).
-500 g/bag
-20 kg/Metal can
-100 kg and more / Steel drum, or customized
All packaging materials are suitable for air, sea and road freight.
